AI Case Sorter

A cross-platform (Windows + Linux + macOS) desktop app that drives a machine which sorts spent brass cartridge casings by headstamp. A camera photographs each case, an image classifier predicts the headstamp stamped on its base, and a serial-connected sorting machine drops the case into the correct bin.

This is the full-parity Python/Qt version of the original Windows-only WinForms application, intended to eventually replace it. It runs fully offline — signing in to the community is optional and only unlocks model sharing/downloads.

⚠️ Scope & safety. This software sorts inert, already-fired brass cases by their stamped markings. It is not a firearm, not a munition, and contains no load data. It also commands real motors and a drop mechanism over a serial link — moving machinery has pinch points and electrical hazards. Run it on hardware at your own risk and keep hands clear during operation. Provided as-is, with no warranty (see LICENSE).

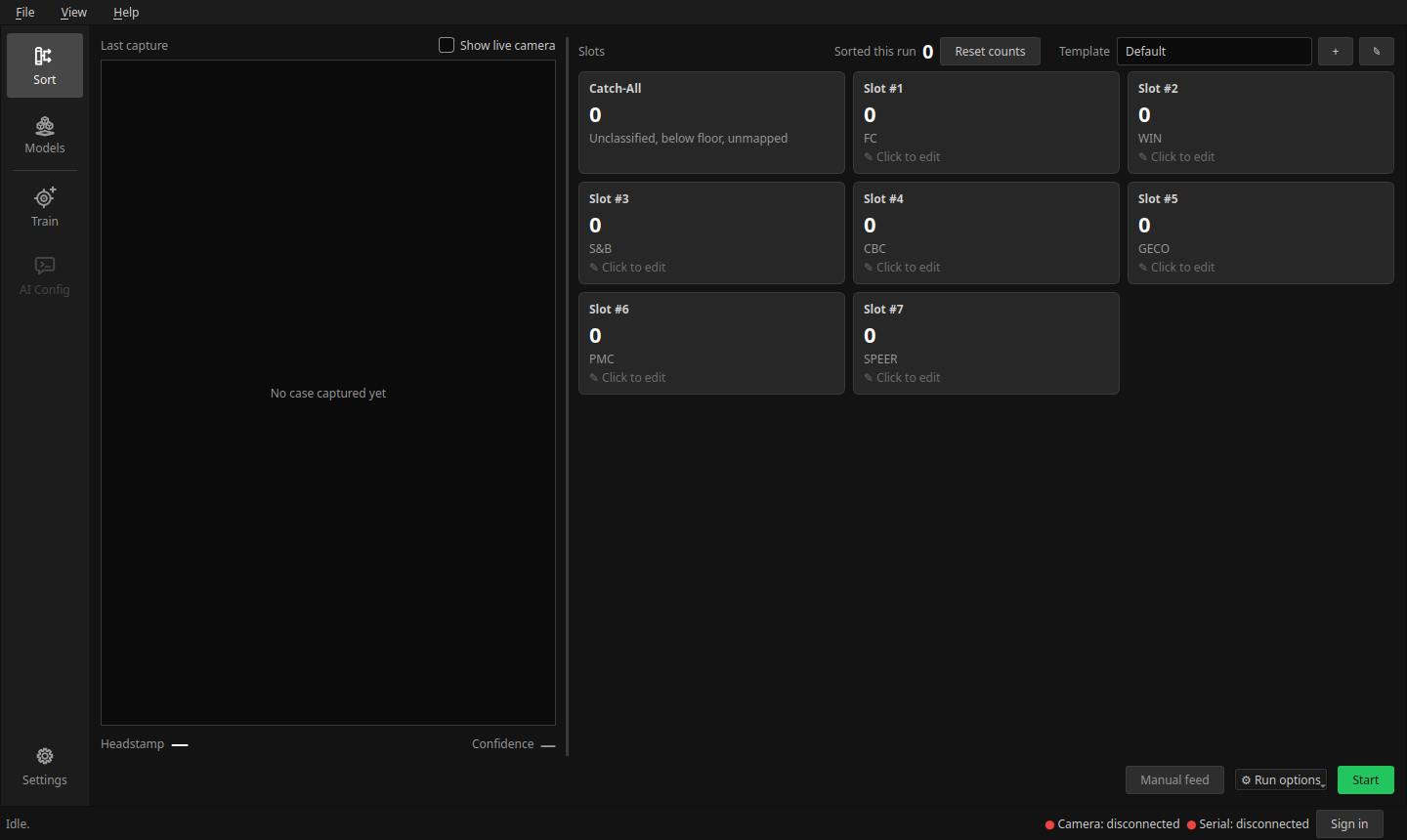

The Sort dashboard: the last captured headstamp on the left, a card per slot
on the right, and the run controls along the foot

How the pieces fit together

The case sorter is built from a few separate repositories. This repo is just the desktop software.

Project	What it is	Link
AI Case Sorter (this repo)	The cross-platform desktop app: capture, classify, route, train, evaluate.	—
CS7.2 hardware	3D-printable models, build kits, assembly guides, and the Arduino-based firmware the app talks to over serial.	AI-Case-Sorter-CS7.2
CaseSorter AI Server	A small local HTTP server that hosts your trained ConvNeXt models behind an OpenAI-compatible API. This is what AI Config mode points at.	AI-Case-Sorter-Server
Community backend	Hosted service at reloadingrecipes.com for sign-in, model sharing/downloads, and the feedback loop. A separate hosted service — not part of this open-source release.	reloadingrecipes.com

You do not need an account to use the app. Everything except community sharing/downloads works locally and offline.

Two ways to classify

The app can predict a headstamp in one of two modes:

AI Config mode (no local model active) — the cropped case image is sent to an OpenAI-compatible HTTP server (POST /v1/chat/completions). Point it at a local CaseSorter AI Server (default http://localhost:8000) to run inference against your own trained models with no GPU drivers on the client.
Local model mode (a model is active) — run a PyTorch ConvNeXt model directly on this machine. The model can be one you trained on the Train page, one downloaded from the community, or one imported from a ZIP — running locally does not require you to have trained it yourself. PyTorch is an optional dependency installed on demand (see Optional: PyTorch).

Features

The window is an activity sidebar down the left, a working area, and movable panels you open when you want them.

Sort — production sorting: the cropped headstamp the classifier saw, a live slot grid with per-headstamp counts, confidence floor, auto-select trays, and package/batch mode.
Models — model library: create, activate, import/export (ZIP), evaluate, and manage training images.
Train — feed → capture → classify → label → save, then launch a local ConvNeXt training run.
AI Config — configure the HTTP classification server and headstamps.
Community (sign-in required) — browse, search, and download community-published models.
Settings — Camera, Serial, Image Processing and Theme: device selection, board settings and sort-arm testing, headstamp-crop tuning (Hough circles + primer mask).
Panels — a serial monitor, a classification history, this project’s user guide (F1, and it follows you between screens), and a theme picker. Drag them where you want; View → Re-dock panels puts them back.
Themes — Dark, Light, Sepia, Midnight Blue, Gothic, or Comic Book, applied immediately and remembered. The theme editor starts from the theme you’re on, sets any color you like with a live preview, and saves, renames or exports it as JSON to share (and imports someone else’s).
A serial emulator so you can run and explore the app with no hardware attached.

Requirements

Some Python 3 already on your machine, new enough to run bootstrap.py itself — it doesn’t need to be the app’s own Python. That one is provisioned separately by uv, which the launch scripts install automatically on first run if it isn’t already present.
Core Python dependencies (installed automatically by the launch scripts): PySide6, pyserial, opencv-python, numpy, Pillow, requests, msal, platformdirs (+ pygrabber on Windows for friendly camera names).
A webcam for image capture, and the CS7.2 sorter hardware on a serial port for actual sorting (the emulator covers everything else).
Optional: PyTorch + torchvision for local training/inference — see below.

Install & run

Windows — just want to use it

No git, no Python, no terminal. Download install-windows.bat and install-windows.ps1 from installer/ into the same folder and double-click the .bat.

It installs Python if you don’t have it, puts the app in %LOCALAPPDATA%\Programs\CaseSorter (per-user — no admin rights), and adds a Start Menu entry. First launch installs dependencies and takes a few minutes.

Updates happen inside the app. When a new release is out, the status bar shows Update available; once it has downloaded it changes to Restart to update, and the update is applied the next time you start. You never need to re-run the installer. Full details in installer/README.md.

The installer is unsigned, so Windows SmartScreen will warn the first time. Choose More info → Run anyway.

From source

The launch scripts install uv if it isn’t already on your machine, use it to fetch the right Python version and sync dependencies from the committed lockfile, then launch the app — all in one step, every time.

Linux / macOS

git clone https://github.com/sjseth/AI-Case-Sorter-Py.git
cd AI-Case-Sorter-Py
./start.sh

On Linux the script may offer to install a few system libraries via sudo — the one thing uv genuinely can’t provision, since they’re system libraries rather than Python packages. Pass --auto (or set AUTO_INSTALL=1) to confirm automatically; it prints a notice first.

Library	Needed by	Debian/Ubuntu	Fedora	Arch
libGL	OpenCV	`libgl1`	`mesa-libGL`	`libglvnd`
glib	OpenCV	`libglib2.0-0`	`glib2`	`glib2`
libxcb-cursor	Qt’s X11 plugin	`libxcb-cursor0`	`xcb-util-cursor`	`xcb-util-cursor`

The first two are required — the app can’t start without them. The third is not: without it Qt falls back to Wayland, where a floating panel can’t be moved or resized. The launcher only asks about it when you have a display, so a headless run is never prompted.

Windows

git clone https://github.com/sjseth/AI-Case-Sorter-Py.git
cd AI-Case-Sorter-Py
start.bat

Prefer to drive uv yourself, or need to run under a debugger? See CONTRIBUTING.md — the flags matter, and getting them wrong makes the app misreport its own version.

Running without hardware

No sorter attached? In Settings → Serial choose the Emulated port. The emulator mirrors the real board’s protocol so you can exercise the run loop, the UI, and most workflows without any hardware.

Optional: PyTorch

Local training and local inference need PyTorch. The app will offer to install it for you (the Install PyTorch dialog), or you can install the ml extra yourself:

uv sync --extra ml        # torch + torchvision

GPU: an NVIDIA card with compute capability ≥ 8.0 (Ampere / RTX 30-series and newer) is used automatically; older or absent GPUs fall back to CPU, which still works but is slower.
The two install routes ship different CUDA builds. The in-app dialog installs CUDA 12.9 wheels on Linux (NVIDIA driver R525+) and CUDA 13.0 wheels on Windows (driver R580+). uv sync --extra ml instead resolves from PyPI, whose Linux build is CUDA 13 (driver R580+) and whose Windows build is CPU-only. For GPU use, prefer the in-app dialog — or install the exact torch==… / torchvision==… pins from pyproject.toml’s [ml] extra yourself from the matching index: uv pip install --index-url https://download.pytorch.org/whl/cu129 on Linux, …/whl/cu130 on Windows.
AI Config mode needs no PyTorch on the client — inference runs on the server instead.

Where your data lives

Everything the app writes — trained models, training images, settings — lives in one folder, outside the app directory:

Platform	Location
Windows	`%LOCALAPPDATA%\CaseSorter`
Linux	`~/.local/share/CaseSorter` (or `$XDG_DATA_HOME/CaseSorter`)
macOS	`~/Library/Application Support/CaseSorter`

<data folder>/
├── config/   casesorter.db (settings/models/headstamps) + msal_cache.bin (token cache)
├── models/<id>/  images · run_images · feedback_images · reports · trainedmodel
└── updates/  staged app update, applied on next launch

Keeping it separate is what makes updating safe — the updater replaces the app folder, and nothing of yours is in it. Delete the folder to reset all state.

Upgrading from an older version? If your data is still in data/ in the app folder, it’s moved to the new location automatically the first time you run the app. Nothing to do.

Overrides:

Set CASESORTER_DATA_DIR to put the data anywhere you like.
Create an empty portable.txt next to bootstrap.py to keep data in <app>/data instead — for USB-stick or fully self-contained installs.

Updating

Installed on Windows via the installer: the app tells you when an update is available and installs it on the next restart.
Running from a git checkout: git pull as usual, then just launch the app again — ./start.sh / start.bat always run whatever’s currently on disk, so a pull that changes bootstrap.py, start.sh/start.bat themselves, or uv.lock (new/updated dependencies) takes effect on the very next launch with nothing extra to run. The in-app updater is still available, but a source checkout is normally managed with git.
Disable update checks entirely with CASESORTER_UPDATE_DISABLED=1, or the checkbox in the update dialog.

Development

uv run pytest                # ~500 tests covering the non-UI logic

uv run syncs dependencies (including the dev group, which is where pytest lives) from the committed lockfile before running, so there’s no separate install step. CI (.github/workflows/build.yml) runs the same suite across a Python version matrix on every push and PR.

Please run pytest before opening a PR. Most of the UI isn’t covered by automated tests — smoke-test UI changes by running the app. See CONTRIBUTING.md for setup and guidelines, and SECURITY.md to report a vulnerability.

Pointing at a local community backend

The community client talks to https://www.reloadingrecipes.com/api and verifies TLS normally. To develop against a local copy of that backend, copy .env.example to .env (next to bootstrap.py, or in data/config/) and set:

Variable	Purpose
`CASESORTER_API_BASE`	Base URL of the community API, e.g. `https://localhost:7043/api`.
`CASESORTER_API_CA_BUNDLE`	PEM cert/bundle to trust — the right way to make a local HTTPS dev server verify.
`CASESORTER_API_INSECURE`	`1` skips TLS verification. Honoured only when the API base is localhost, so it can’t weaken production traffic.

Real environment variables take precedence over the .env file, and .env is gitignored. For an ASP.NET Core dev server, export its certificate with dotnet dev-certs https --export-path devcert.pem --format PEM --no-password and point CASESORTER_API_CA_BUNDLE at it.

CONTRIBUTING.md — how to set up, run the tests, and submit changes.
CLAUDE.md — architecture map for contributors and AI coding assistants (layers, event bus, module reference, UI surfaces, data layout).
RELEASING.md — how a release gets cut, for maintainers.

Using the app

A first run, start to finish — every screen referenced here is described in Features above, and the full application guide is published at https://sjseth.github.io/AI-Case-Sorter-Py/ (Getting Started, the User Guide — also F1 inside the app — and the whole thing as a PDF).

Launch it. ./start.sh / start.bat / the Windows installer’s Start Menu entry — see Install & run. First launch takes a couple of minutes while dependencies sync; every launch after that is fast.
No hardware yet? Skip straight to the emulator. In Settings → Serial, set the port to Emulated. It mirrors the real board’s protocol, so everything below — camera, classification, sorting — works the same with no sorter or camera attached, aside from what the camera itself would show.
Connect a camera. Settings → Camera lists detected devices; pick one and confirm you get a live preview. If casings aren’t cropping cleanly, Settings → Image Processing tunes the Hough-circle detection and primer mask against a captured frame, with a before/after preview.
Connect the sorter (skip if using the emulator). Settings → Serial connects to the board, exposes its init settings, and has a sort-arm test to confirm slots move correctly before you feed it real cases.
Choose how to classify. Two modes — see Two ways to classify for the tradeoffs:
- AI Config — point the AI Config screen at an OpenAI-compatible server (e.g. a local CaseSorter AI Server). No local model, no PyTorch, works immediately.
- Local model — activate one on the Models screen: create your own, download one from Community (sign-in required), or import one from a ZIP. Local inference needs PyTorch — the app offers to install it the first time you need it (see Optional: PyTorch).
Assign headstamps to slots. On the Sort screen, each slot card lists the headstamps that route to it — check the ones you want, per slot. Assignments are saved automatically as sorting templates, so you can switch between different bin layouts (e.g. “range brass” vs. “match prep”) for the same model from the template dropdown, without re-checking boxes each time.
Test before you commit hardware to it. Test once on the Sort screen feeds and classifies a single case without moving the sort arm or motors — confirms the whole pipeline (camera → crop → classify) end to end. Manual feed does one real feed-and-sort cycle. Start runs the full continuous loop.
Watch it work. The Sort screen’s live slot grid updates per-headstamp counts as cases are sorted; the Classification History panel shows a running tile grid of recent classifications with a colour trail. Anything below your confidence floor routes to the catch-all slot instead of guessing.
Improve the model over time. The Train screen is feed → capture → classify → label → save, building a labeled image set you can use to train a local ConvNeXt model whenever you’re ready — or just keep collecting images while sorting normally (“Sort While Training”).

No hardware, no camera, nothing installed yet? Steps 2 and 5 (emulator + AI Config against a friend’s or your own server) are enough to explore the whole app with zero physical setup.

License

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

It is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for details. The full text is in LICENSE, or see https://www.gnu.org/licenses/.

Acknowledgements

Part of the SJSeth AI Case Sorter ecosystem. The hardware, firmware, and build guides live in the CS7.2 repository; the local model host lives in AI-Case-Sorter-Server.
